Backtest: holding out the latest diagonals to validate projections

Motivation

Reserving and projection methods are fitted on observed data, but their practical value lies in how they would have performed at past valuation dates. backtest() answers that question by hiding the latest holdout calendar diagonals from a triangle, refitting the model on the earlier portion, and comparing its projection to the actuals that were withheld. This is calendar-diagonal hold-out (rather than dev-period hold-out), because it simulates “what would the model have said K months ago at the valuation date?”. The cell-level metric (ae_err, “A/E Error”) follows the standard actuarial A/E convention, $\mathrm{ae\_err} = v_{\mathrm{actual}} / v_{\mathrm{pred}} - 1$ , where positive values flag under-projection (the model under-estimated; actual exceeded expected) and negative values flag over-projection.

Basic usage

library(lossratio)
data(experience)
tri_sur <- as_triangle(
  experience[coverage == "surgery"],
  groups   = "coverage",
  cohort   = "uy_m",
  calendar = "cy_m",
  loss     = "incr_loss",
  premium  = "incr_premium"
)

bt <- backtest(tri_sur, holdout = 6L)
print(bt)
#> <Backtest>
#>   dispatcher: fit_ratio
#>   target    : ratio
#>   holdout   : 6 diagonals (159 cells)
#>   A/E Error : mean -9.38% / median -4.39%

The returned object is a "Backtest" list with these key slots:

ae_err — per-cell data.table (cohort, dev, actual, expected, aeg, ae_err + _incr siblings, cal_idx).
col_summary — A/E Error aggregated by dev.
diag_summary — A/E Error aggregated by calendar diagonal.
masked — the triangle the fit was trained on (latest diagonals removed).
fit — the fit object returned by the target-specific dispatcher (fit_ratio / fit_loss / fit_premium) chosen by target=.

summary(bt) prints the two summary tables alongside the call metadata.

Validation coverage after masking

Masking the latest holdout diagonals shortens the triangle’s lower-right edge. Chain ladder can only project as far as the largest dev still observed in the masked data, so cells beyond that range — the oldest cohorts at their latest dev — have no projection to compare against. These unreachable cells are silently dropped, so bt$ae_err contains only cells where both an actual and a finite projection exist.

Practical takeaway: as holdout grows, the validation set shrinks fastest in the oldest cohorts’ late-dev region — exactly where chain ladder relies on extrapolation (projection beyond the observed dev range), so it is the area most in need of validation yet the first to disappear.

Output interpretation

col_summary — systematic bias by development period. A consistently signed A/E Error at a given dev signals a structural mismatch between the model and that maturity. Early-dev positive values usually reflect inflated link factors; late-dev values flag tail miscalibration.

head(bt$col_summary, 8)
#>    coverage   dev     n   aeg_mean    aeg_med ae_err_mean ae_err_med  ae_err_wt
#>      <char> <int> <int>      <num>      <num>       <num>      <num>      <num>
#> 1:  surgery     2     1 -0.2879721 -0.2879721  -0.3667493 -0.3667493 -0.3667493
#> 2:  surgery     3     2 -0.2108693 -0.2108693  -0.2609106 -0.2609106 -0.2668725
#> 3:  surgery     4     3 -0.1980716 -0.2262460  -0.2360836 -0.2278978 -0.2407573
#> 4:  surgery     5     4 -0.2070832 -0.1696142  -0.2373172 -0.2037644 -0.2364591
#> 5:  surgery     6     5 -0.2350791 -0.2220419  -0.2444979 -0.2435615 -0.2485779
#> 6:  surgery     7     6 -0.2261834 -0.2456246  -0.2251483 -0.2400164 -0.2303588
#> 7:  surgery     8     6 -0.2375787 -0.2195124  -0.2337115 -0.2298462 -0.2424551
#> 8:  surgery     9     6 -0.2210369 -0.1791352  -0.2188077 -0.1763073 -0.2257798
#>    incr_aeg_mean incr_aeg_med incr_ae_err_mean incr_ae_err_med incr_ae_err_wt
#>            <num>        <num>            <num>           <num>          <num>
#> 1:    -0.5749542   -0.5749542       -0.4291122      -0.4291122     -0.4291122
#> 2:    -0.3489404   -0.3489404       -0.2942675      -0.2942675     -0.2942675
#> 3:    -0.3738322   -0.3334336       -0.3060770      -0.2730004     -0.3060770
#> 4:    -0.4433586   -0.4866788       -0.3243281      -0.3560179     -0.3243281
#> 5:    -0.5667766   -0.5767098       -0.4089965      -0.4161644     -0.4089965
#> 6:    -0.4048255   -0.5050649       -0.2913899      -0.3635413     -0.2913899
#> 7:    -0.6238985   -0.6021573       -0.4242259      -0.4094427     -0.4242259
#> 8:    -0.7336689   -0.7388122       -0.4942706      -0.4977357     -0.4942706

ae_err_mean averages cell-level A/E Error, ae_err_med is the median, and ae_err_wt = sum(actual - proj) / sum(proj) is the premium-weighted pooled A/E ratio minus 1. Comparing the three columns flags whether a few large cells dominate (ae_err_wt very different from ae_err_med) or the bias is uniform.

diag_summary — calendar-year effect. A single bad diagonal in otherwise unbiased output points at a calendar event (a rate change, claim handling shift, or one-off shock) that a static fitter cannot see by construction.

bt$diag_summary
#>    coverage cal_idx     n    aeg_mean     aeg_med ae_err_mean  ae_err_med
#>      <char>   <int> <int>       <num>       <num>       <num>       <num>
#> 1:  surgery      31    29 -0.04575359 -0.03198719 -0.05658328 -0.02153108
#> 2:  surgery      32    28 -0.07040314 -0.05170431 -0.07561194 -0.03549370
#> 3:  surgery      33    27 -0.08297822 -0.05675816 -0.08611363 -0.03865162
#> 4:  surgery      34    26 -0.10380725 -0.06595414 -0.10216462 -0.04456169
#> 5:  surgery      35    25 -0.12608316 -0.08752566 -0.11863390 -0.05863248
#> 6:  surgery      36    24 -0.14828046 -0.14817761 -0.13376449 -0.12050537
#>      ae_err_wt incr_aeg_mean incr_aeg_med incr_ae_err_mean incr_ae_err_med
#>          <num>         <num>        <num>            <num>           <num>
#> 1: -0.03788261   -0.30136185   -0.4459253      -0.19728502      -0.3160730
#> 2: -0.05696273   -0.31278712   -0.3376753      -0.20366014      -0.2455593
#> 3: -0.06588038   -0.07618026   -0.2335583      -0.04127158      -0.1580403
#> 4: -0.08133780   -0.26063771   -0.4114195      -0.16056535      -0.2755793
#> 5: -0.09770892   -0.31819948   -0.3999726      -0.21990402      -0.2615089
#> 6: -0.11404379   -0.36981575   -0.3068424      -0.23186701      -0.1978691
#>    incr_ae_err_wt
#>             <num>
#> 1:     -0.2021198
#> 2:     -0.2090259
#> 3:     -0.0505205
#> 4:     -0.1715931
#> 5:     -0.2086546
#> 6:     -0.2415822

A monotone drift across calendar diagonals (as in the surgery example above, where A/E Error becomes increasingly positive across 25, ..., 30) typically indicates that actuals on the latest diagonals are running above what the earlier-cohort link factors imply, i.e. a regime shift the static model has not absorbed.

ae_err — cell-level outliers. For diagnosing specific cohort × dev cells, inspect bt$ae_err directly:

head(bt$ae_err, 5)
#>    coverage     cohort   dev   actual expected         aeg       ae_err
#>      <char>     <Date> <int>    <num>    <num>       <num>        <num>
#> 1:  surgery 2023-02-01    30 1.474656 1.485769 -0.01111280 -0.007479494
#> 2:  surgery 2023-03-01    29 1.441826 1.416462  0.02536395  0.017906553
#> 3:  surgery 2023-03-01    30 1.441234 1.424023  0.01721096  0.012086155
#> 4:  surgery 2023-04-01    28 1.513021 1.508373  0.00464845  0.003081765
#> 5:  surgery 2023-04-01    29 1.531922 1.502555  0.02936662  0.019544454
#>    incr_actual incr_expected   incr_aeg incr_ae_err cal_idx
#>          <num>         <num>      <num>       <num>   <int>
#> 1:    1.311699      1.635607 -0.3239081 -0.19803535      31
#> 2:    2.057141      1.335414  0.7217266  0.54045140      31
#> 3:    1.425549      1.635607 -0.2100580 -0.12842811      32
#> 4:    1.573801      1.449050  0.1247511  0.08609165      31
#> 5:    2.055572      1.335414  0.7201577  0.53927654      32

Plot demos

Four plot views are registered on "Backtest":

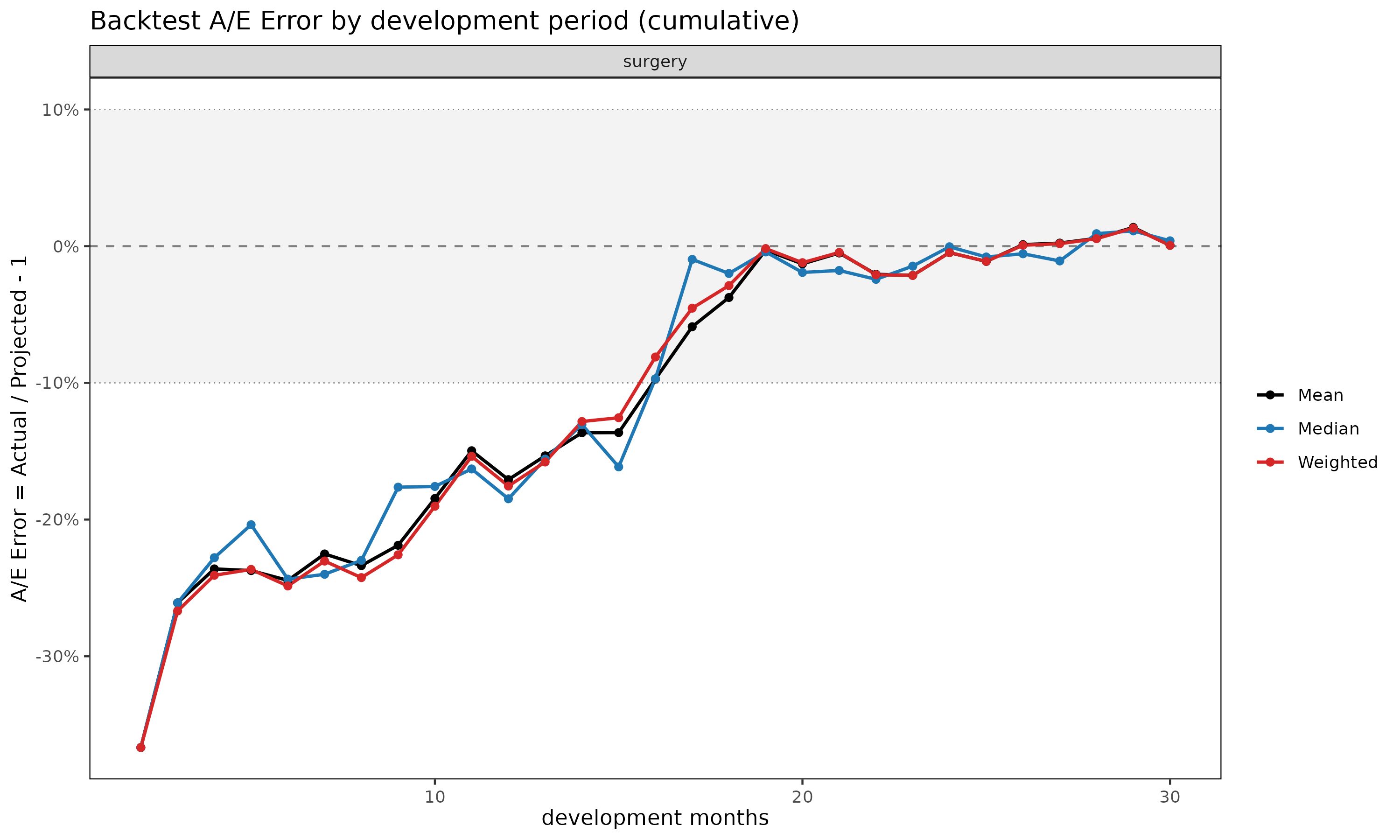

plot(bt, type = "col")    # A/E Error by dev (point + dashed zero line)

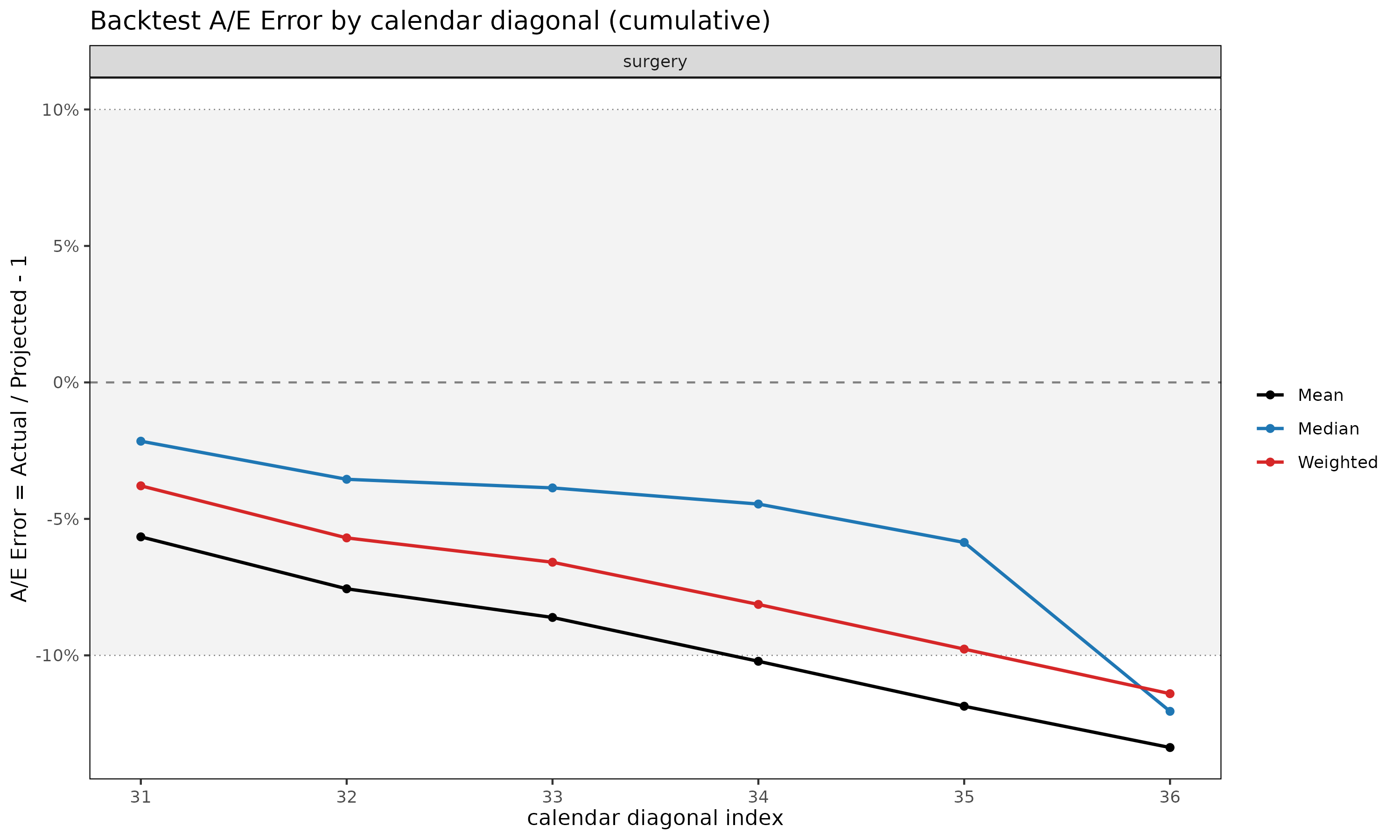

plot(bt, type = "diag")   # A/E Error by calendar diagonal

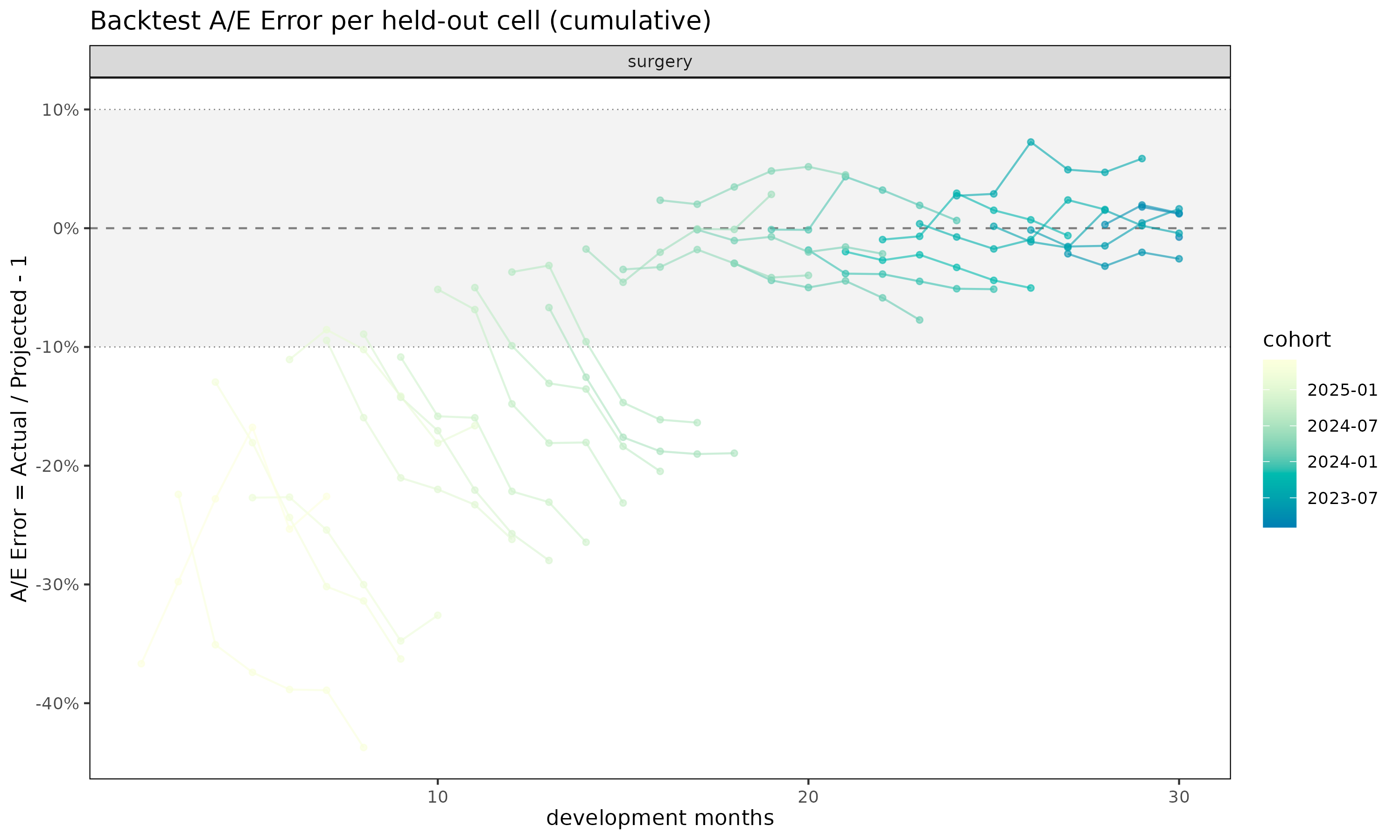

plot(bt, type = "cell")   # per-cohort A/E Error trajectories over dev

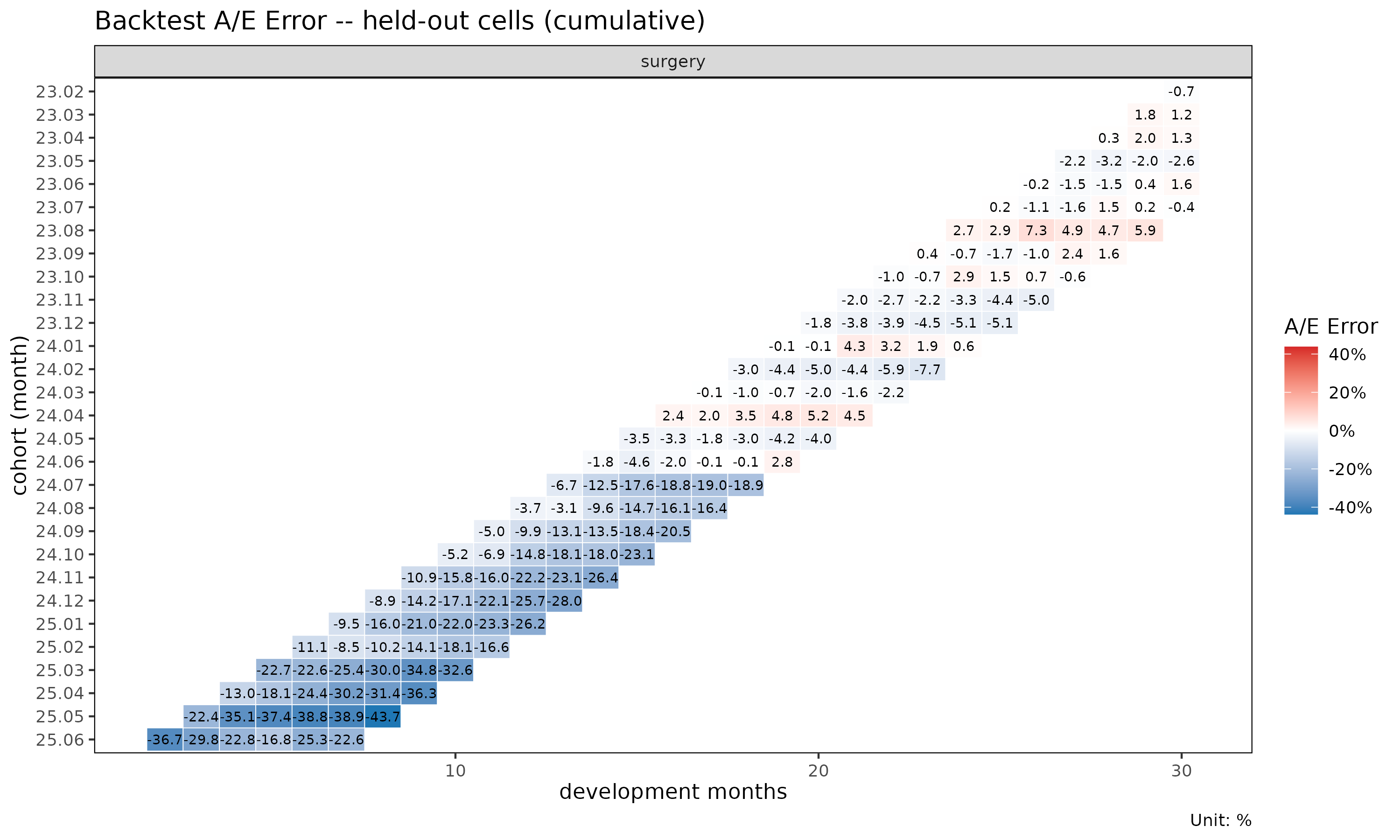

plot_triangle(bt)         # diverging-color heatmap on the held-out wedge

type = "col" is the right place to look for systematic dev-period bias; type = "diag" reveals calendar-year drift; type = "cell" exposes which cohorts contribute the bias; plot_triangle() puts the cell-level A/E Error values on the same triangular layout as plot_triangle() for the underlying fit, with a red/blue diverging palette where red marks under-projection (actual > pred) and blue marks over-projection (actual < pred).

Holdout selection

Choose holdout to balance two opposing effects:

Too large: the masked triangle loses its latest experience, so the oldest cohorts have few or no reachable cells in their later dev periods. The validation set shrinks unevenly, biased toward early dev.
Too small: the held-out wedge is just a thin diagonal band, which may not capture enough cells to reveal systematic patterns.

Typical choices are holdout = 6L (half-year) for monthly triangles, or holdout = 12L (full year) for stronger validation when the triangle has at least 24–30 diagonals of history.

Choosing the projection target

The default is target = "ratio" with loss_method = "ed". The loss ratio is unitless and dimension-free across cohorts of very different volume, so ae_err_mean and ae_err_med carry a consistent meaning across the triangle.

A note on target. target is the score column — the column on which actual vs. predicted are compared cell-by-cell. It selects which role-specific fitter backtest() runs internally and which projection column on the fit’s $full table is compared against the held-out actuals:

`target`	Internal fitter	Method arg	Compared column
`"ratio"`	`fit_ratio()`	`loss_method`	`ratio_proj`
`"loss"`	`fit_loss()`	`loss_method`	`loss_proj`
`"premium"`	`fit_premium()`	`premium_method`	`premium_proj`

The loss_method argument selects the underlying loss / loss-ratio projection strategy: "ed" (exposure-driven, the default) is the unconditional safe baseline – no maturity or regime detection needed; "cl" is the classical chain ladder, which lets the cohort’s own cum_loss anchor cohort-level drift; "sa" (stage-adaptive) blends ED before the maturity point with CL afterwards. The premium_method argument selects the premium projection strategy when target = "premium".

bt_ed       <- backtest(tri_sur, holdout = 6L, loss_method = "ed")  # default
bt_cl       <- backtest(tri_sur, holdout = 6L, loss_method = "cl")
bt_sa       <- backtest(tri_sur, holdout = 6L, loss_method = "sa")

bt_loss     <- backtest(tri_sur, holdout = 6L,
                        target = "loss", loss_method = "cl")
bt_premium  <- backtest(tri_sur, holdout = 6L,
                        target = "premium", premium_method = "cl")

print(bt_ed)
#> <Backtest>
#>   dispatcher: fit_ratio
#>   target    : ratio
#>   holdout   : 6 diagonals (159 cells)
#>   A/E Error : mean -9.38% / median -4.39%

For monetary impact (loss or premium) backtesting, set target = "loss" or target = "premium" to score the corresponding projection lane directly.
